Product Description:
GW4-252 hom zoo meej thiab txhim kho kev sib cais hloov pauv yog qib ob-kab qhib, nrog qhov siab tshaj AC 50Hz sab nraum zoov hluav taws xob hluav taws xob hluav taws xob. Nws muab zinc-free switching ntawm high-voltage kab thiab hluav taws xob cais ntawm puas high-voltage busbars, brackets thiab lwm yam khoom siv los ntawm nyob high-voltage kab.
Cov khoom no muaj nyob rau hauv cov nram qab no specifications.
Raws li seb puas muaj qhov hloov hauv av, nws tuaj yeem muab faib ua: tsis muaj av, sab laug hauv av, txoj cai hauv av, thiab ob chav av. Nruab nrog JW7-252 ob-kauj ruam ua kom zoo meej thiab txhim kho kev hloov hauv av.
Paub meej ntawm cov khoom

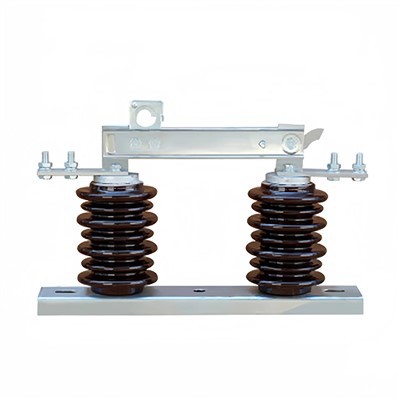

GW4-252 zoo meej thiab txhim kho kev rho tawm hloov pauv suav nrog peb tus ncej, txhua tus ncej muaj ob tus ncej, thiab feem ntau yog tsim los ntawm lub hauv paus, tus ncej insulator, thiab ib qho kev coj ua. Txhua tus ncej muaj ob tug ncej insulating, uas yog feem ntau ntawm cov kabmob rooj zaum ntawm ob qho kawg ntawm lub hauv paus thiab kev sib txuas los ntawm kev sib txuas. Lub rooj vag conductive yog muab faib ua ob halves thiab tsau rau ntawm tus ncej insulator feem. Kev sib cuag ntawm kev sib cuag yog nyob rau hauv nruab nrab ntawm ob qho kev txhawb nqa.
Thaum lub tshuab ua haujlwm ua haujlwm, ib kem ntawm tus ncej insulator yog tsav los tig 90 degree, thiab lwm yam insulator kuj tig 90 degree vim qhov txuas txuas txuas, yog li cov hniav qhib thiab kaw rau ib sab. Nws muaj cov cuab yeej sib txuas sib txuas nruab nrab ntawm qhov hloov pauv thiab qhov hloov hauv av.
Kev rho tawm hloov pauv yog ua rau hauv ib qho-ncej hom, thiab kev ua haujlwm peb-ncej tau paub los ntawm kev sib txuas ntawm tus pas nrig. Lub riam tseem ceeb yog nruab nrog CJ6A zoo meej thiab txhim kho hluav taws xob tshuab, thiab hauv pem teb riam yog nruab nrog CSG zoo meej thiab txhim kho tib neeg cov txheej txheem. CSG tib neeg mechanism tuaj yeem nruab nrog DSW4 electromagnetic xauv tshiab raws li cov neeg siv khoom xav tau.
Nta:
1. Lub U-shaped contact ntiv tes thiab cov qauv kev sib cuag ntiv tes tshiab tau txais kev pom zoo kom tsis txhob muaj cov yam ntxwv ntawm cov qauv qub uas tsis tsim nyog rau kev ruaj khov, thiab cov ntiv tes tiv tauj yog insulated los ntawm lub caij nplooj ntoos hlav kom tsis txhob muaj qhov tsis ua haujlwm ntawm lub caij nplooj ntoos hlav. mus rau qhov cua sov mus ntev.
2. Nws txais yuav cov qauv kaw tag nrho cov kabmob, thiab cov kabmob nto yog coated nrog cov roj disulfide txaus kom ntseeg tau tias kev ua haujlwm ntev ntev. 3. Ib qho kev sib txuas ruaj khov yog siv nruab nrab ntawm lub rooj zaum davhlau ya nyob twg thiab lub davhlau ya nyob twg thaiv, thiab cov bushings insulated yog siv nyob rau sab sauv thiab qis kawg ntawm lub davhlau ya nyob twg thaiv. Xyuas kom ntseeg tau tias ntws thiab hloov tau yooj yim.
4. Cov riam hauv pem teb tseem ceeb txhua tus txais yuav 180 degree kev khiav hauj lwm mechanism, thiab cov caj npab nquag nyob rau hauv txoj hauj lwm tuag thaum qhib thiab kaw txoj hauj lwm nyob rau hauv qhov chaw, zoo xyuas kom meej qhov kev cia siab ntawm lub ntsiab riam hauv pem teb thaum lawv nyob rau hauv lub qhib thiab kaw txoj hauj lwm. .
